pcb terminal blocks, terminal block screw type, 128A-3.5 3.81 green 128A 128 3.5 terminal block double layer type

Name: pcb terminal blocks terminal block screw type 128A35 381 green 128A 128 35 terminal block double layer type
Brand: KEFA
Price: 0.23 USD

China pcb terminal blocks, terminal block screw type, 128A-3.5 3.81 green 128A 128 3.5 terminal block double layer type wholesale

Place of Origin : China

Brand Name : KEFA

Certification : CE ROHS

Model Number : 2P 3P

MOQ : Negotiation

Price : 0.23

Packaging Details : 200pcs per inner box

Delivery Time : 2-5 days after receive deposit

Payment Terms : T/T

Supply Ability : 20000/days

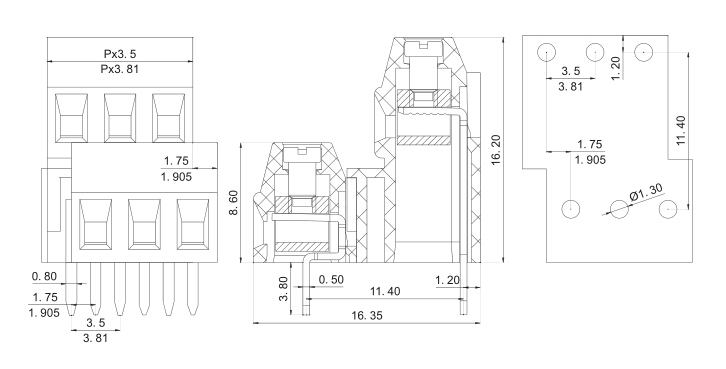

size : 16.2x16.35 mm other size see drawing

mold : current mold or build new mold

servise : OEM ODM

sample : free

Contact Now

Material:
Pitch:3.5 3.81mm
Poles: 2P 3P can assembly any poles
Screw: M2.5 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: 10A
With standing voltage: AC1250V/1min
Wire range: 24-12 AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.2Nm(1.8lb in)
Strip length: 5-6mm
contact daisyzhou_003 at 163.com

pcb terminal blocks, terminal block screw type, 128A-3.5 3.81 green 128A 128 3.5 terminal block double layer type

We are manufacturing a variety of Terminal blocks, mainly producing Pluggable terminal block, Barrier terminal block, Spring Terminal block, Screw terminal block, Feed through Terminal block. We also have the certifications of UL,VDE etc. OEM&ODM are warmly welcomed.Any question, please contact us freely.
