KEFA terminal blocks, terminal block screw type, 126-5.0 screw pcb terminal blocks pin header tin plated 126 5.0

Name: KEFA terminal blocks terminal block screw type 12650 screw pcb terminal blocks pin header tin plated 126 50
Brand: KEFA NO MARK
Price: 0.23 USD

China KEFA terminal blocks, terminal block screw type, 126-5.0 screw pcb terminal blocks pin header tin plated 126 5.0 wholesale

Place of Origin : China

Brand Name : KEFA NO MARK

Certification : CE ROHS

Model Number : 2P 3P

MOQ : Negotiation

Price : 0.23

Packaging Details : 200pcs per inner box

Delivery Time : 2-5 days after receive deposit

Payment Terms : T/T

Supply Ability : 20000/days

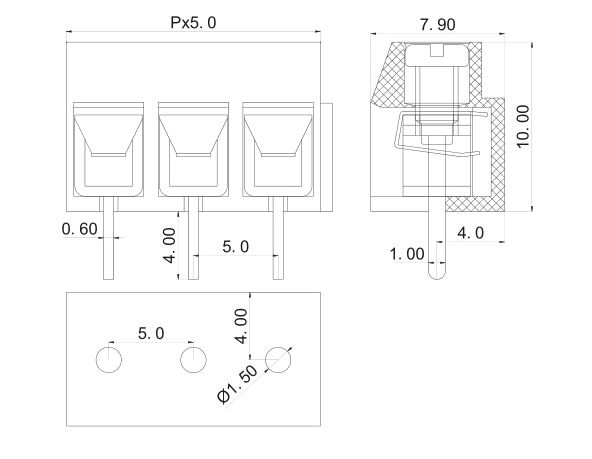

SIZE : SEE DETAIL DRAWING

MOLD : CURRENT MOLD OR OTHERS

Drawing : new drawing base on buyer asked

Contact Now

Material:
Pitch:5.0mm
Poles: 2P 3P, can assembly any poles
Screw: M2.5 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 259V
Rated current: 8A
With standing voltage: AC2000V/1min
Wire range: 26-14 AWG
Mechanical:
Temperature range: -30℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.4Nm(3.5 lb in)
Strip length: 6-7mm

KEFA terminal blocks, terminal block screw type, 126-5.0 screw pcb terminal blocks pin header tin plated 126 5.0

We are manufacturing a variety of Terminal blocks, mainly producing Pluggable terminal block, Barrier terminal block, Spring Terminal block, Screw terminal block, Feed through Terminal block. We also have the certifications of UL,VDE etc. OEM&ODM are warmly welcomed.Any question, please contact us freely.
